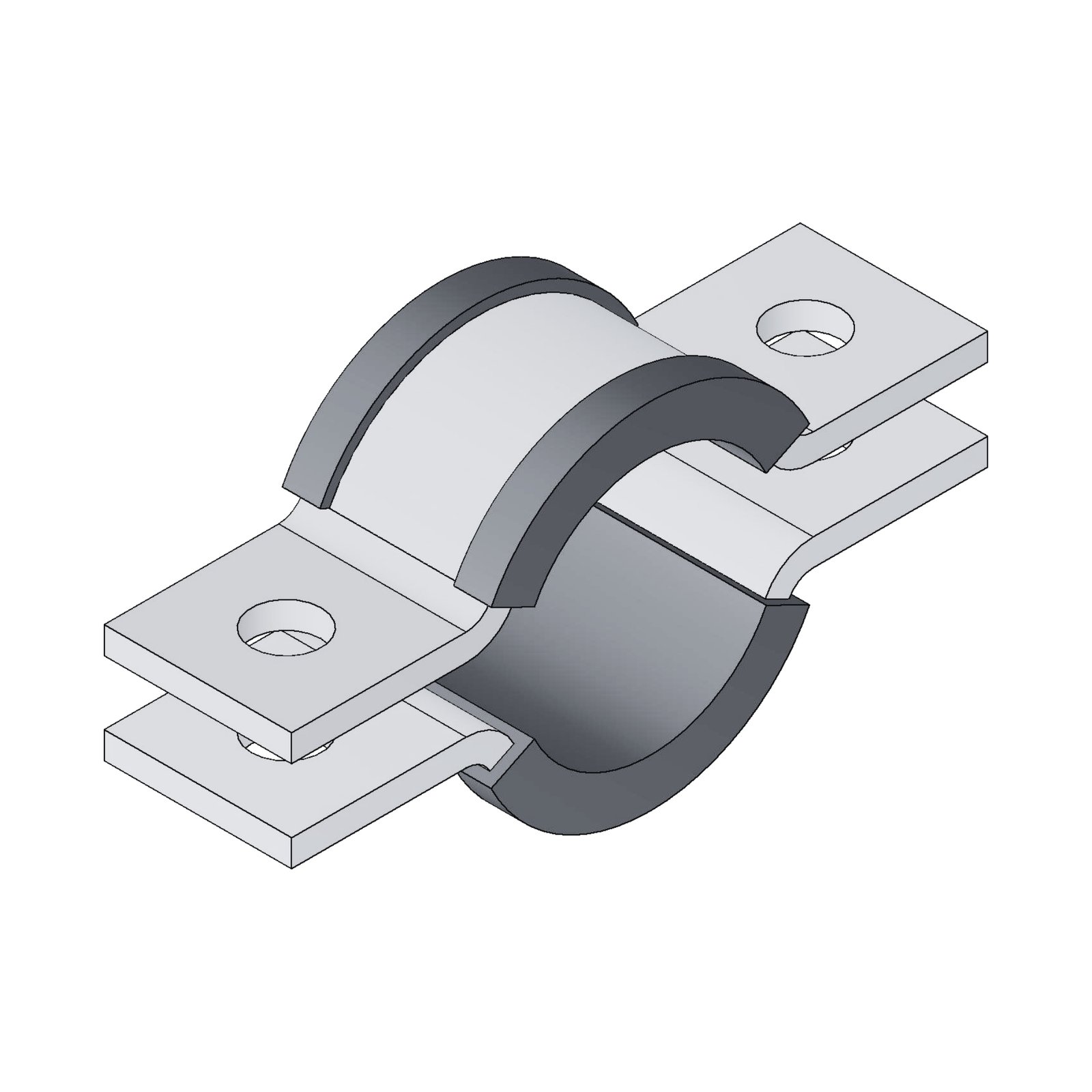

AHM25 is an insulated 2-bolt pipe clamp designed for pipelines where thermal insulation and mechanical fixation are required. It combines a standard 2-bolt clamp geometry with an insulating spacer to reduce thermal bridging and protect the pipe coating. Sizes and bolt specifications exactly follow the catalog table.

Attributes

• Model: AHM25 Insulated 2 Bolt Pipe Clamp

• Material: Carbon steel (standard); full traceability and 3.1 material certificate available.

• DN (catalog range): DN15 — DN600 (specific DN options listed in catalogue table)

• Bolt / nut (example entries from table): M10x30 (M10) for small DN; up to M36 for largest DN — follow DN-specific table on page.

• Insulation: factory fitted spacer (insulated type) — suitable for insulated pipe lines.

• Surface treatment: as-manufactured (options: HDG, electro-galvanized, powder coat, ISO 12944 paint systems) per project.

• Typical applications: insulated process lines, HVAC systems with thermal jackets, chilled / hot piping where thermal isolation is required.
