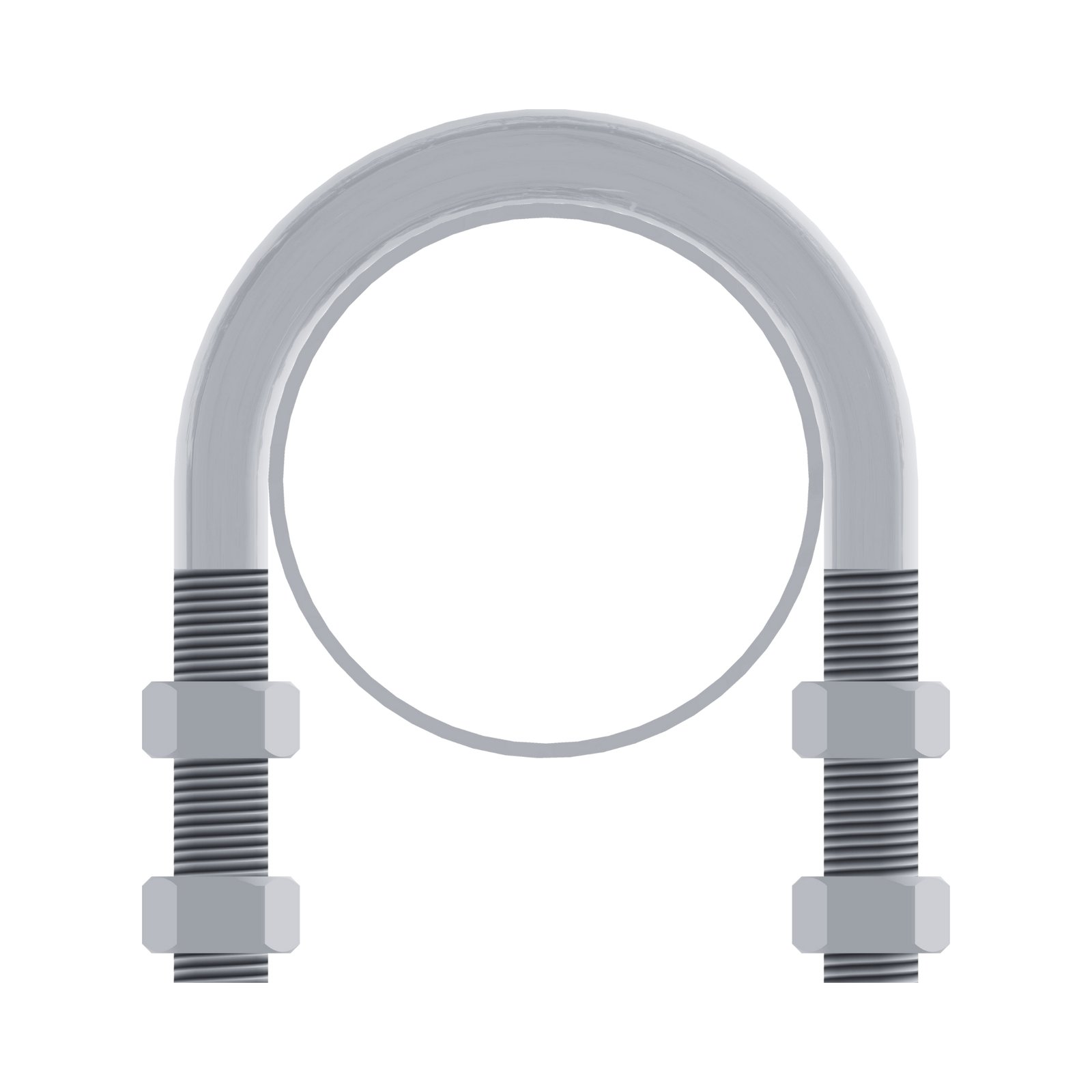

AHM80 U-Bolt Guide is designed to guide pipelines while allowing controlled axial movement. The U-bolt configuration secures the pipe laterally and vertically, preventing excessive displacement while accommodating thermal expansion along the pipe axis. It is commonly used on pipe racks and structural steel supports.

Attributes

• Model: AHM80 U-Bolt Guide

• Type: U-Bolt Guide

• Material: Carbon steel (stainless steel available upon request)

• Function: Pipe guiding (axial movement allowed, lateral restraint)

• Installation: On steel beams or structural supports

• Surface protection: Hot-dip galvanized, electro-galvanized, or painted systems
